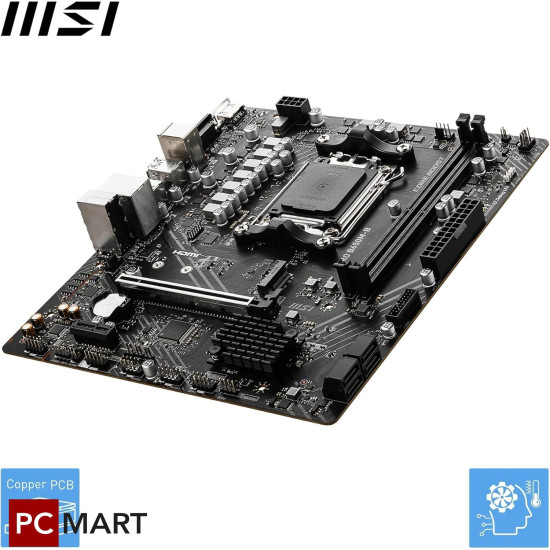

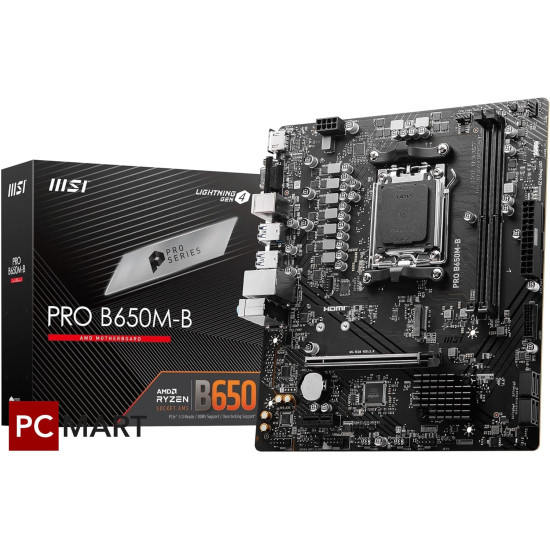

MSI PRO B650M-B Motherboard

Chipset: AMD B650

• CPU: Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

Socket AM5

• Memory:

2x DDR5, Maximum Memory Capacity 128GB

Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 6800+ MHz

• 1DPC 2R Max speed up to 6000+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports AMD EXPO

• Onboard Graphics:

1x HDMI™

Support HDMI™ 2.1, maximum resolution of 4K 60Hz (Available only on processors featuring integrated graphics)

1x VGA

Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

Graphics specifications may vary depending on the CPU installed.

• Slot:

1x PCI-E x16 slot:

• Supports x16 (For Ryzen™ 9000/ 7000 Series processors)

• Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)

• Supports x4 (For Ryzen™ 8500/ 8300 Series processors)

1x PCI-E x1 slot

• PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

• Audio:

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

• Storage:

1x M.2

• M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices

4x SATA 6G

• RAID:

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

• USB:

2x USB 2.0 (Rear)

4x USB 2.0 (Front)

4x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

• LAN:

Realtek® RTL8125BG 2.5G LAN

• Internal IO:

1x Power Connector (ATX_PWR)

1x Power Connector (CPU_PWR)

1x CPU Fan

2x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

1x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector (JRGB)

1x TPM pin header (Support TPM 2.0)

4x USB 2.0 ports

2x USB 5Gbps Type A ports

• LED Feature:

4x EZ Debug LED

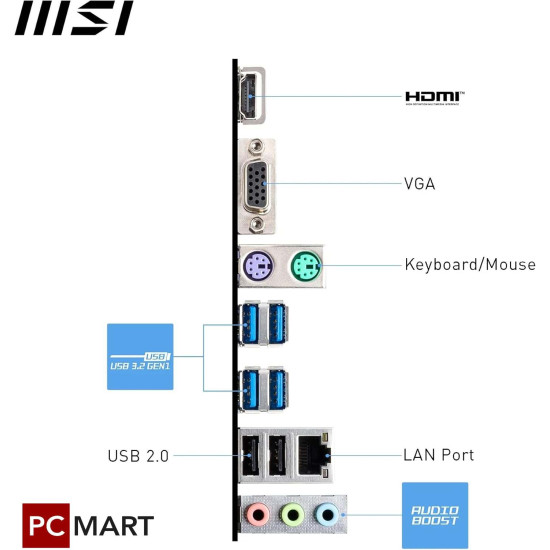

• Back Panel Ports:

HDMI™

VGA

Keyboard/Mouse

USB 3.2 Gen 1 5Gbps (Type-A)

LAN port

Audio connectors

USB 2.0

• Operating System:

Support for Windows® 11 64-bit, Windows® 10 64-bit
