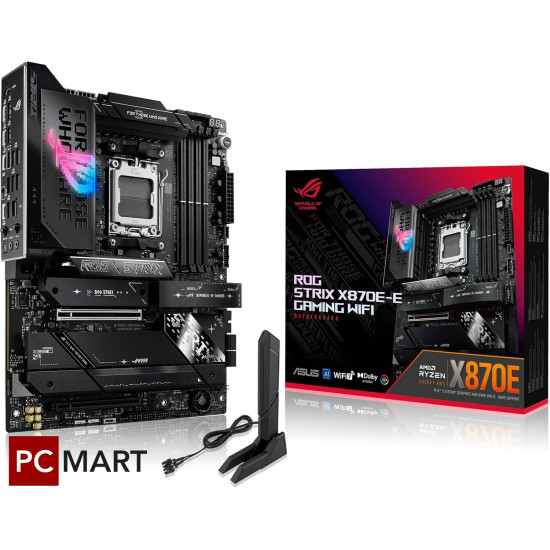

ASUS ROG STRIX X870E-E GAMING WIFI

CPU Specifications:

Socket: AM5 for AMD Ryzen™ 9000, 8000, 7000 Series Desktop Processors

Chipset: AMD X870E

Memory Support: Up to 192GB DDR5, supporting speeds up to:

Ryzen™ 9000 Series: 8000+ MT/s (OC)

Ryzen™ 8000 Series: 8400+ MT/s (OC)

Ryzen™ 7000 Series: 8000+ MT/s (OC)

Supports ECC and Non-ECC, Un-buffered DIMM with AMD EXPO™ for Overclocking

Graphics:

1 x HDMI™ port (max 4K@60Hz)

2 x USB4® ports supporting USB Type-C® display outputs (max 4K@60Hz)

Expansion & Storage:

Expansion Slots:

1 x PCIe 5.0 x16 slot (Ryzen™ 9000 & 7000 Series)

1 x PCIe 4.0 x16 slot (Ryzen™ 8000 Series)

AMD X870E Chipset: 1 x PCIe 4.0 x16 slot (x4 mode)

Storage:

5 x M.2 slots (Key M) supporting PCIe 5.0 x4 & x4 modes

4 x SATA 6Gb/s ports

RAID support via AMD RAIDXpert2 Technology

Ethernet: 1 x Realtek 5Gb Ethernet with ASUS LANGuard

Wireless & Bluetooth:

Wi-Fi: Wi-Fi 7 (802.11be), supports 2.4/5/6GHz frequencies, up to 6.5 Gbps transfer

Bluetooth: v5.4

USB Ports:

Rear USB (Total 13 Ports):

2 x USB4® (40Gbps, Type-C®)

1 x USB 20Gbps (Type-C®)

10 x USB 10Gbps (9 x Type-A, 1 x USB Type-C®)

Front USB (Total 11 Ports):

1 x USB 20Gbps (Type-C®)

5 additional USB ports via headers

Audio:

Audio Codec: ROG SupremeFX 7.1 Surround Sound, ALC4080

Features: High-quality 120 dB SNR stereo playback, premium capacitors, rear optical S/PDIF

Special Features:

Thermal Solutions: M.2 heatsinks, VRM heatsink design, ASUS ProCool II

ASUS Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-DIMM, Q-LED

Aura Sync: Addressable Gen 2 headers for RGB lighting

Software:

ROG Software: ROG CPU-Z, Dolby Atmos, Armoury Crate, AIDA64 Extreme (trial)

ASUS Software: GameFirst, Fan Xpert 4, Power Saving, HWiNFO

BIOS:

UEFI BIOS: 256 Mb Flash ROM, includes AI Overclocking, Dynamic OC Switcher

Form Factor:

Size: ATX (12" x 9.6" / 30.5 cm x 24.4 cm)
