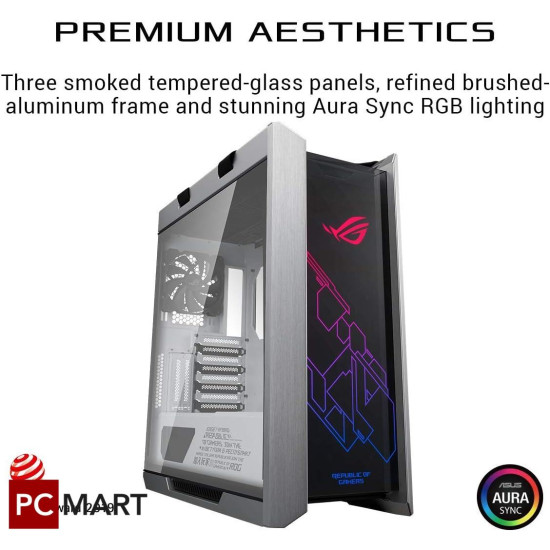

ASUS ROG Strix Helios GX601 White Edition RGB

Case Specification

Model:

ROG Strix Helios

Case Size:

Mid Tower

Motherboard Support:

EATX (12"x10.9"), ATX, Micro-ATX, Mini-ITX

Dimensions (WxHxD):

250 x 565 x 591 mm

I/O Panel:

1 x Headphone

1 x Microphone

4 x USB 3.1 Gen 1

1 x USB 3.1 Gen 2 Type-C

LED Control Button

Fan Control Button

Reset Button

Storage Drive:

4 x 2.5" Bays

2 x 2.5"/3.5" Combo Bays

Water Cooling Support:

Front: 120/140/240/280/360/420 mm

Top: 120/140/240/280/360 mm

Rear: 120/140 mm

Cooling Support:

Front: 3 x 120 mm, 3 x 140 mm (Pre-installed)

Top: 3 x 120 mm, 2 x 140 mm

Rear: 1 x 120 mm, 1 x 140 mm (Pre-installed)

Maximum Cooler Dimensions:

CPU Cooler Height: 190 mm

GPU Length: 450 mm (requires a riser cable above 200 mm for vertical installation)

PSU Length: 220 mm

Other Features:

Tempered Glass (Front, Left, Right Sides)

Removable Dust Filters (Front, Top, Bottom)

Maximum Cable Management Space: 33 mm

Weight: 18 Kg

AURA Sync: ARGB

Expansion Slots:

8 horizontal, 2 additional vertical slots
